🧪 Parcel Settings

SounderPy sounding plots can display several parcel traces. The special_parcels argument provides three useful levels of control:

None — standard SounderPy parcel behavior;
"simple" — omit the additional most-unstable ECAPE trace while retaining the basic parcel traces;
a custom nested list — explicitly select highlighted and background parcel traces.

The custom parcel calculations use parcel definitions supported by the ecape-parcels integration.

Retrieve the Example Sounding

import sounderpy as spy

data = spy.get_obs_data(
    "OAX",
    "2014", "06", "16", "18",
    hush=True,
)

Default Parcel Behavior

With special_parcels=None, SounderPy uses its normal parcel configuration:

spy.build_sounding(
    data,
    special_parcels=None,
    radar=None,
    map_zoom=0,
)

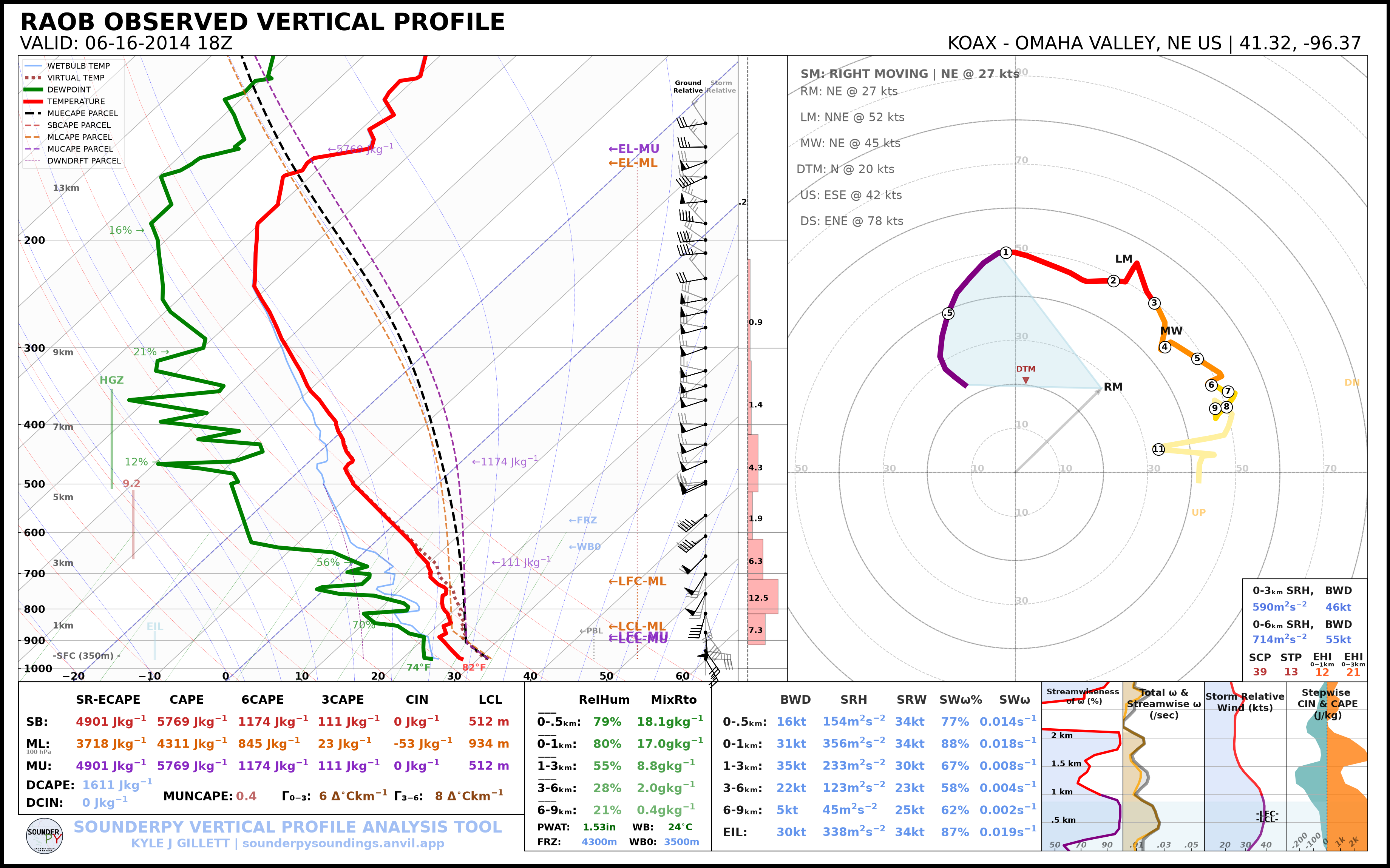

SounderPy sounding using default parcel settings

When applicable to the profile, the default behavior includes the standard surface-based, mixed-layer, and most-unstable CAPE parcel traces and the additional most-unstable ECAPE trace.

Simple Parcel Behavior

Use special_parcels="simple" for the simpler parcel configuration:

spy.build_sounding(
    data,
    special_parcels="simple",
    radar=None,
    map_zoom=0,
)

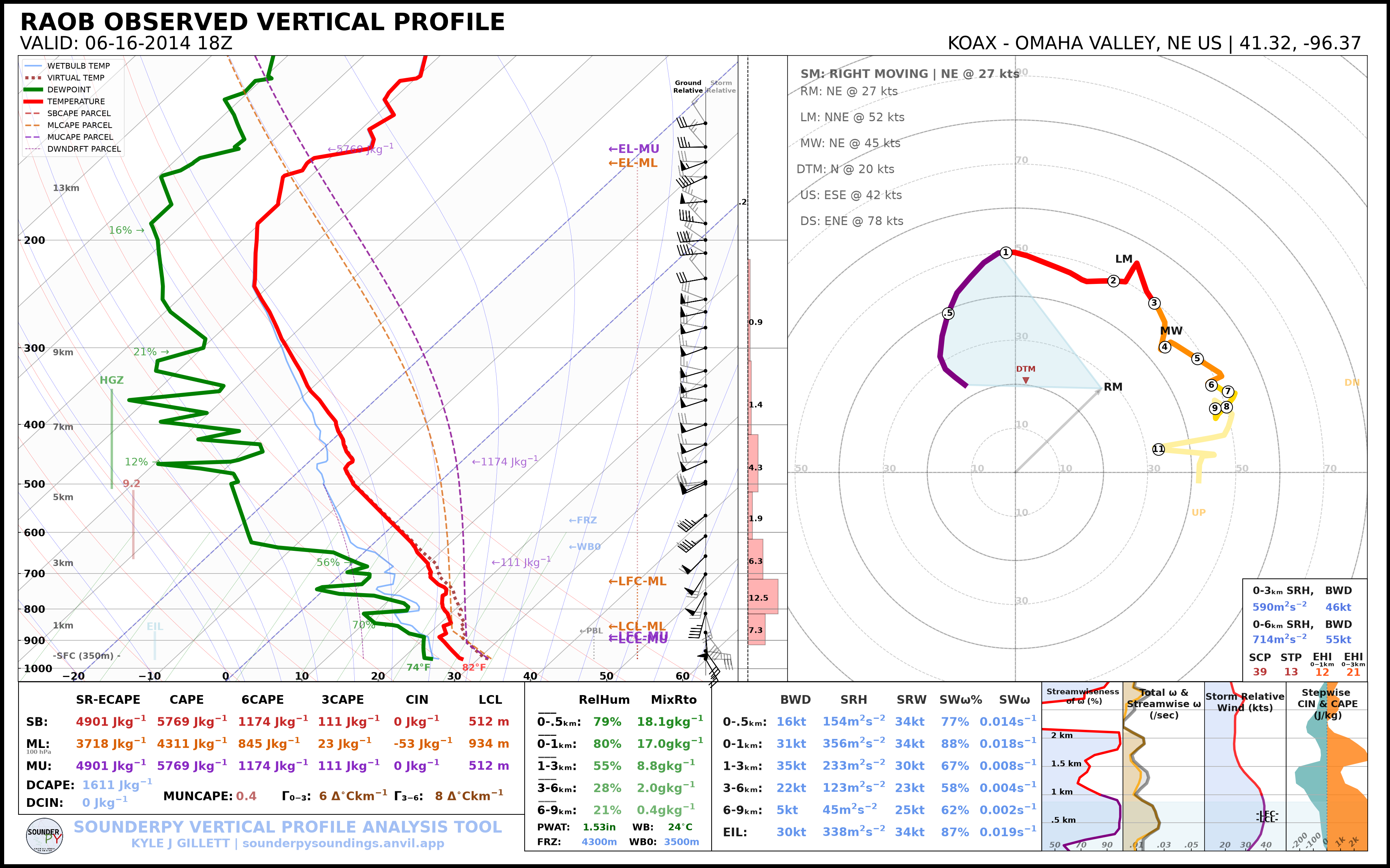

SounderPy sounding using simple parcel settings

The simple option retains the standard CAPE parcel traces while skipping the additional most-unstable ECAPE parcel calculation/trace.

Custom Parcel Configuration

For full control, provide a nested list containing exactly two lists:

special_parcels = [
    ["highlighted parcels"],
    ["background parcels"],
]

The first list contains parcel codes that should be emphasized. The second list contains parcel codes that should be shown as background/reference traces.

For example:

custom_parcels = [
    ["sb_ia_ecape"],
    ["sb_ps_ecape", "sb_ps_cape"],
]

spy.build_sounding(
    data,
    special_parcels=custom_parcels,
    radar=None,
    map_zoom=0,
)

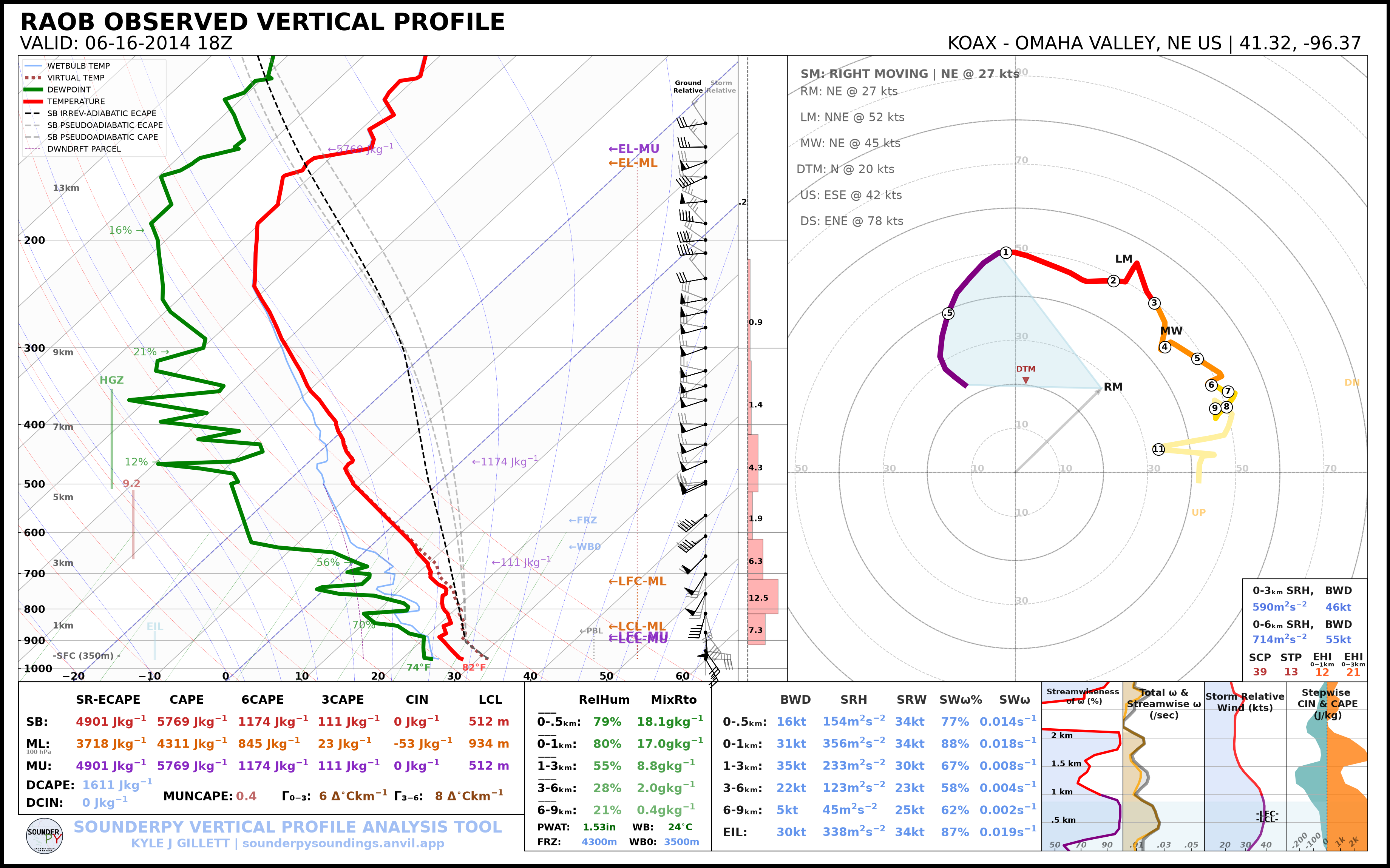

SounderPy sounding using custom parcel settings

Understanding Parcel Codes

Each parcel code contains three components:

PARCELTYPE_ADIABATICSCHEME_CAPETYPE

For example:

sb_ia_ecape
│  │   │
│  │   └── ECAPE
│  └────── irreversible-adiabatic
└───────── surface-based

Parcel Type

sb: Surface-based parcel.
ml: Mixed-layer parcel.
mu: Most-unstable parcel.

Adiabatic Scheme

ps: Pseudoadiabatic.
ia: Irreversible-adiabatic.

CAPE Type

cape: Traditional CAPE parcel.
ecape: Entraining CAPE parcel.

Valid Parcel Codes

The currently supported codes are:

mu_ps_cape
mu_ia_cape
mu_ps_ecape
mu_ia_ecape

ml_ps_cape
ml_ia_cape
ml_ps_ecape
ml_ia_ecape

sb_ps_cape
sb_ia_cape
sb_ps_ecape
sb_ia_ecape

Highlight Multiple Parcels

Multiple parcel traces can be emphasized:

custom_parcels = [
    [
        "sb_ia_ecape",
        "ml_ia_ecape",
    ],
    [
        "sb_ps_cape",
        "ml_ps_cape",
    ],
]

spy.build_sounding(
    data,
    special_parcels=custom_parcels,
    radar=None,
    map_zoom=0,
)

Performance Considerations

Custom ECAPE parcel calculations are more computationally expensive than the basic CAPE traces. If you only need the common parcel paths for a quick-look figure, special_parcels="simple" is the lighter-weight option.

For publication or detailed analysis, a custom parcel configuration can make the intended parcel comparison much clearer than plotting every available trace.

Next Steps

Continue to Hodograph Options to customize storm motion and ground-relative/storm-relative wind displays.
